ICS429/439仪表

产地：

瑞士

型号：

ICS429/439

rame src="https://player.youku.com/embed/XMjY1NzMxMTY0NA==" width="680" height="498" frameborder="0">rame>

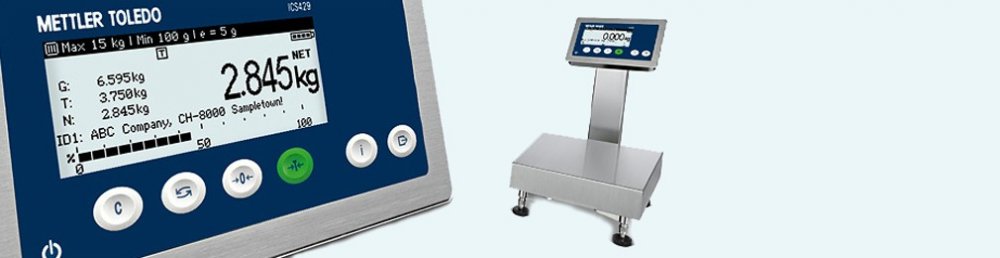

ICS429/ICS439 系列台秤用于工业过程的基本称重



用于快速和精确操作的基本称重

该秤设计用于在恶劣的工业环境中进行可靠的基本称重。 其 LCD 显示屏可提供无误的读数，加速您的生产过程。 ICS 仪表三个可选的显示屏设计显示不同的参数，并提供三种结构类型，能够通过调节满足您的需求。

快速安全的数据管理

Databics 是一款功能完善的数据管理系统，可与 ICS4 和 ICS6 秤配合使用。 在工厂可直接通过 RS232、USB、以太网或 WLAN 通信控制每台秤。其允许您通过计算机设置和管理秤数据库，存储称重数据，以用于合法目的或审计。 该软件可根据 AIAG、Odette 标准，甚至以自定义格式提供标签配置。

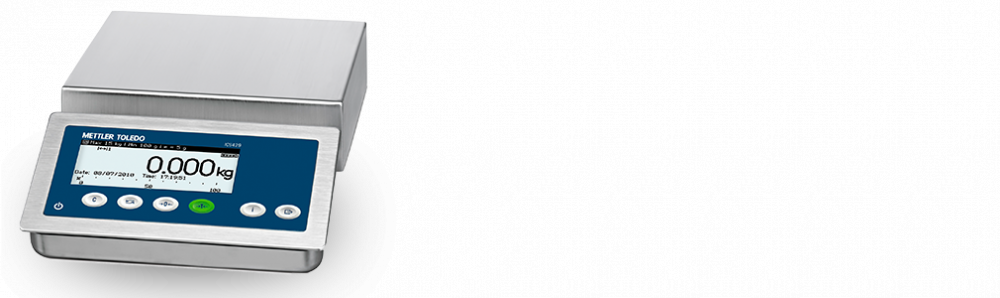

始终如一的可靠结果

易于使用的基本型号可提供所有必需功能。 ICS 系列具有经过认证的工业级质量，能为您的日常工业流程提供可靠的称重结果。 其可满足您基本称重流程的所有需求。

知识触手可及

可使用 Microsoft Excel 等工具集中存储您收集的数据，以便轻松进行实时分析。  您也可使用基于网络的仪表板实时实现可视化，可通过任意计算机或移动设备访问仪表板。

产品和规格

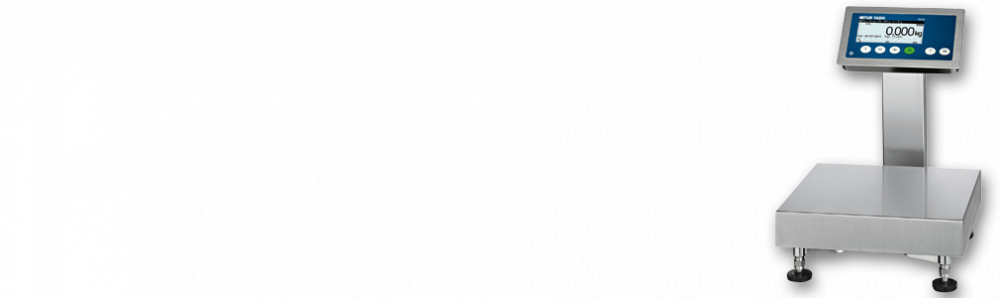

ICS429/ICS439 系列台秤



	ICS4x9g-A6磅秤	ICS4x9g-B30磅秤	ICS4x9g-B60磅秤	ICS4x9g-QA3 Weighing scale	ICS4x9g-BB30 Weighing Scale	ICS4x9g-BB60 Weighing Scale	ICS4x9g-A3 Weighing Scale	ICS4x9g-A15 磅秤	ICS4x9g-QA6 Weighing Scale	ICS4x9g-QB30 Weighing Scale	ICS4x9g-QB15 Weighing Scale	ICS4x9g-QB60 Weighing Scale
保护等级	Terminal IP66/IP68/IP69kTerminal + aluminum load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + hermetically sealed stainless steel load cell IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminum load cell IP65Terminal + potted stainless steel load cell IP65/IP67Terminal + stainless steel hermetically sealed load cell IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k	Terminal IP66/IP68/IP69kTerminal + aluminium load cell IP65Terminal + stainless steel load cell potted IP65/IP67Terminal + stainless steel load cell hermetically sealed IP68/IP69k
分度值	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d	1x3000d1x6000d1x15000d
分辨率（检定分度）	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e	1x3000e
应用	Basic weighing	Basic Weighing	Basic Weighing	Basic Weighing	Basic weighing	Basic Weighing	Basic Weighing	Basic Weighing	Basic Weighing	Basic Weighing	Basic Weighing	Basic Weighing
接口	RS232 (standard), optional: RS232, RS422/485, Ethernet, USB Device, Digital I/O	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (standaard), optioneel: RS232, RS422/485, Ethernet, USB Device, Digital I/O	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)	RS232 (Standard), RS422, RS485, Ethernet, USB Device, Digital I/O (4 Outputs & 4 Inputs)
显示屏	LCD	LCD	LCD	LCD	LCD	LCD	LCD	LCD	LCD	LCD	LCD	LCD
秤台尺寸	240x300x97 mm / 9.45x11.81x3.81"	400x500x134.5 mm / 15.74x19.68x5.29"	400x500x134.5 mm / 15.74x19.68x5.29"	228x228x97 mm / 8.97x8.97x3.81"	300x400x108 mm / 11.81x15.74x4.25"	300x400x108 mm / 11.81x15.74x4.25"	240x300x97 mm / 9.45x11.81x3.81"	240x300x97 mm / 9.45x11.81x3.81"	228x228x97 mm / 8.97x8.97x3.81"	305x305x108 mm / 12x12x4.25"	305x305x108 mm / 12x12x4.25"	305x305x108 mm / 12x12x4.25"
读数精度	2g	10g	20g	1g	10g	20g	1g	5g	2g	10g	5g	20g
键盘	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad	ICS429 without numeric keypadICS439 with numeric keypad
附件	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure	see product brochure

ICS429/439仪表由梅特勒托利多 为您提供，如您想了解更多关于ICS429/439仪表报价、参数等信息 ，欢迎来电或留言咨询。
